Numerical Solutions to Wave Equation

---

Consider the wave equation

subject to the boundary conditions: and the initial conditions: Here f(x) and g(x) are specified functions of spacial variable x and c is the speed of the wave.

We partition the rectangle \( R = \left\{ (x,t)\, : \, 0 \le x \le \ell , \ 0 \le t \le b \right\} \) into a grid consisting of n-1 by m-1 rectangles with sides \( \Delta x = h \) and Δt = k, as shown in Figure.

Start at the bottom row, where \( t= t_1 =0 \) and the solution is known to be \( u(x_i , t_1 ) = u(x_i , 0 ) = f(x_i ) . \) We shall use a difference-equation method to compute approximations The true solution value at the mesh points is \( u(x_i , t_j ) . \)

The central-difference formulas for approximating u_tt(x,t) and u_xx(x,t) are

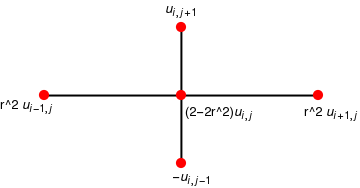

The grid spacing is uniform in every row: \( x_{i+1} = x_i +h \) (and \( x_{i-1} = x_i -h \) ); and it is uniform in every column: \( t_{j+1} = t_j +k \) (and \( t_{j-1} = t_j -h \) ). Next, we drop the terms O(h²) and O(k²) and use approximation \( u_{i,j} \) for \( u(x_i , t_j ) , \) which produces the difference equation For convenience, the abbreviation t = ck/h is introduced, and the above equation is reduced to The above equation is utilized to determine the values in the row j+1 across the grid, assuming that approximations at both rows j and j-1 are known: for i = 2,3,...,n-1. The computational stencil is shown below.

Caution must be taken when using the above explicit difference formula. If the error made at one stage of the calculations is eventually dampened out, the method will be stable. To guarantee stability in this formula, it is necessary to employ the CFL condition r = ck/h ≤ 1. There are known other schemes, called implicit methods, that are more complicated to implement, but do not have stability restriction for r.

Two starting rows of values corresponding to j = 1 and j = 2 must be supplied in order to use the explicit recurrence formula. Since the second row is not usually given, the boundary function g(x) is used to help produce starting approximations in the second row. Fix x = x_i at the boundary and apply Taylor's formula of order 1 for expanding u(x,t) about (x_i, 0). The value at this point satisfies

Using the given identities \( u(x_i , 0) = f(x_i ) = f_i \) and \( u_t (x_i ,0) = g(x_i ) = g_i , \) we derive the formula for computing the numerical approximations in the second row: As a rule, \( u(x_i , t_2 ) \ne u_{i,2} , \) and such errors introduced by the above approximation formula will propagate throughout the grid and will not be dampened out when the explicit scheme is implemented. Hence, it is prudent to use a very small step size for k so that the values for u_i,2 do not contain a large amount of truncation error.

Often, the boundary function f(x) has a second derivative over the interval. In this case, we have \( u_{xx} (x,0) = f'' (x) , \) and it is beneficial to use the Taylor formula of order 2 to help construct the second row. To do this, we go back to the wave equation and use the relationship between the second order partial derivatives to obtain

Using Taylor's formula of order 2 we obtain Using notation r = ck/h, the above formula can be simplified: for i = 2,3,...,n-1.



II. Two Exact Rows given

---

the accuracy of the numerical approximations depends on the truncation errors in the formulas used to convert the partial differential equation into a difference equation. Although it is unlikely to know values of the exact solution for the second row of the grid, if such knowledge were available, using the increment k = ch along the t-axis will generate an exact solution at all the other points throughout the grid.

Note: Theorem does not guarantee that the numerical solutions are exact when numerical calculations based on

are used to construct approximations u_i,2 in the second row. Indeed, truncation error will be introduced if u_i,2 ≠ u(x_i,k) for some i, where 1 ≤ i ≤ n.This is why we endeavor to obtain the best possible values for the second row by using the second order Taylor approximations in the above equation.

Program (Finite-difference method for the wave equation): to approximate the solution of \( u_{tt} = c^2 u_{xx} \) over \( R = \{\,(x,t) \,:\, 0 \le x \le \ell , \ 0 \le t \le b \) with u(x,0) = f(x), u_t(x,0) = g(x), for 0 ≤ x ≤ ℓ, and u(0,t) = 0, u(ℓ,t) = 0, for 0 ≤ t ≤ b.

function U=wave(f,g,a,b,c,n,m)
% Input  -- f=u(x,0) as a string 'f'
%        -- g=ut(x,0) as a string 'g'
%        -- a and b right end points of [0,a] and [0,b]
%        -- c=the speed constant in wave equation
%        -- n and m number of grid points over [0,a] and [0,b]
% Output -- U solution matrix;
% Initialize parameters and U
h=a/(n-1);
k=b/(m-1);
r=c*k/h;
r2=r^2;
r22=r^2/2;
s1=1-r^2;
s2=2-2*r^2;
U=zeros(n,m);

% Compute first and second rows
for i=2:n-1
    U(i,1)=feval(f,h*(i-1));
    U(i,2)=s1*feval(f,h*(i-1))+k*feval(g,h*(i-1))+r22*(feval(f,h*i) + feval(f,h*(i-2)));
end

% Compute remaining rows of U
for j=3:m,
    for i=2:(n-1),
        U(i,j) = s2*U(i,j-1)+r2*(U(i-1,j-1)+U(i+1,j-1))-u(i,j-2);
    end
end

U=U';

Example: The finite-difference method is used to determine the solution of the wave equation Fourth order approximation of the partial derivative \frac{\lartial^2 f}{\partial x \partial y} using Richardson interpolation.
