Introduction: Tubing



Consider a curve in three-dimensional space defined parametrically by

\[ x = f(t), \quad y = g(t), \quad z=h(t). \]
We are interested in finding an equation of the surface with a circular cross section of radius a that surrounds this curve, which is a tube that follows the shape of the curve. A point P on the desired surface can be reached by adding two vectors: r(t) that connects the origin with a point on the curve and a vector a(u) that connects that point to a point on the surface. If P denotes the position vector of point P, then
\[ {\bf P}(t,u) \equiv \left\langle X(t,u), Y(t,u), Z(t,u) \right\rangle = {\bf r}(t) + {\bf a} (u) . \]
The first vector r(t) has components \( \left\langle f(t), g(t), h(t) \right\rangle , \) corresponding to the parametrization of the curve, and the second vector has components
\[ {\bf a}(u) = \left\langle a\,\cos (u)\,\cos\varphi , a\,\cos (u)\,\sin\varphi , a\,\sin (u) \right\rangle , \]
where u is the angle that a(u) makes with cylindrical unit vector \( \hat{\bf e}_{\rho} \) and ϕ is the angle that \( \hat{\bf e}_{\rho} \) makes with the positive ordinate. We need to express coordinates of P as a function of two paramters. Expressing trigonometric functions as functions of t, we get
\[ \cos \varphi = \frac{x}{\rho} = \frac{f(t)}{\sqrt{f^2 (t) + g^2 (t)}} , \qquad \sin \varphi = \frac{y}{\rho} = \frac{g(t)}{\sqrt{f^2 (t) + g^2 (t)}} . \]
Then we derive
\[ \begin{split} X(t,u) &= f(t) + a\,\cos u\,\cos \varphi = f(t) \left( 1 + \frac{a\,\cos u}{\sqrt{f^2 (t) + g^2 (t)}} \right) , \\ Y(t,u) &= g(t) + a\,\cos u\,\sin \varphi = g(t) \left( 1 + \frac{a\,\cos u}{\sqrt{f^2 (t) + g^2 (t)}} \right) , \\ Z(t,u) &= h(t) + a\,\sin u . \end{split} \]

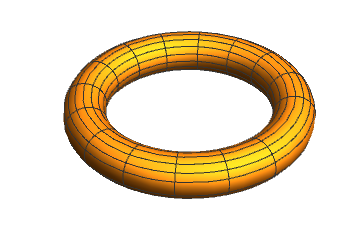

Finally, we plot some equations with Mathematica. We start with torus:
f[t_] := 5*Cos[t]; g[t_] := 5*Sin[t]; h[t_] := 0;
X[t_, u_, a_] := f[t] (1 + a*Cos[u]/Sqrt[f[t]^2 + g[t]^2])
Y[t_, u_, a_] := g[t] (1 + a*Cos[u]/Sqrt[f[t]^2 + g[t]^2])
Z[t_, u_, a_] := h[t] + a*Sin[u]
ParametricPlot3D[{X[t, u, 1], Y[t, u, 1], Z[t, u, 1]}, {t, 0, 2*Pi}, {u, 0, 2*Pi}, Axes -> False, Boxed -> False]

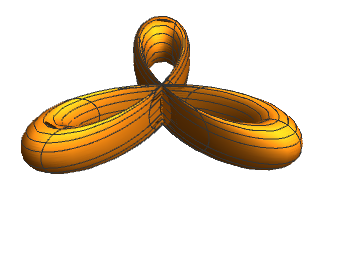

Next, we produce the tubing of a clover leaf.
Clear[f, g]
f[t_] := 5*Cos[t]*Cos[3*t]; g[t_] := 5*Sin[t]*Cos[3*t];
ParametricPlot3D[{X[t, u, 1], Y[t, u, 1], Z[t, u, 1]}, {t, 0, 2*Pi}, {u, 0, 2*Pi}, Axes -> False, Boxed -> False, PlotPoints -> 30]

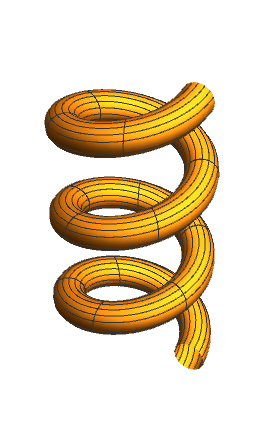

The third plot is a helicl tube.
Clear[f, g, h]
f[t_] := 4*Cos[t]; g[t_] := 4*Sin[t]; h[t_] := t;
ParametricPlot3D[{X[t, u, 1], Y[t, u, 1], Z[t, u, 1]}, {t, 0, 6*Pi}, {u, 0, 6*Pi}, Axes -> False, Boxed -> False, PlotPoints -> 30]
By replacing the functions f, g, and h with any other triplet, one can produce a variety of tubes. However, as the figure with clover tube shows, the circular cross sectons are not really circular. A true circular cross section should describe a circle perpendicular to the curve.

To make the circular cross section perpendicular to the curve, we have to choose a(u) to be of constant length and perpendicular to the curve at the point of contact. This means that a(u) is to be perpendicular to an element of length dr of the curve. Since

\[ {\text d}{\bf r} = \left\langle {\text d}f , {\text d}g , {\text d}h \right\rangle = \left\langle f' (t) , g' (t) , h' (t) \right\rangle {\text d}t, \]
a(u) must be perpendicular to \( {\bf r}' (t) \equiv \left\langle f' (t) , g' (t) , h' (t) \right\rangle . \) Letting a(u) have components s, v, and w, we have
\[ {\bf r}' (t) \cdot {\bf a} (u) = 0 = \left\langle f' (t) , g' (t) , h' (t) \right\rangle \cdot \left\langle s , v , w \right\rangle . \]
This equation can be rewritten in Mathematica as
r[t_] := {f[t],g[t], h[t]}; rp = {s,v,w} ;
r'[t] . rp == 0
where we have used rp for a(u). We need to define an angle uon the circular sross section to measure the direction of a(u). For this, we need a fiducial axis relative to which we measure the angle. This axis must lie on the plane of the circle. A vector that defines such an axis could be taken to be \( \left\langle h' (t) , 0 , -f' (t) \right\rangle . \) Therefore, we get the second equation

horV := {h'[t], 0, -f'[t]} ;
Cos[u] == horV . rp / (a*Sqrt[h'[t]^2 + f'[t]^2])
where a is the length of the vector rp:
rp.rp == a^2 ;
We ask Mathematica to solve the above three equations.
Solve[{{f'[t],g'[t], h'[t]}. {s,v,w} ==0, Cos[u] == (s*h'[t] - w*f'[t])/(a*Sqrt[h'[t]^2 + f'[t]^2]), s^2 + h^2 + g^2 == a^2}, {s,v,w}]
The result is a list of solutions with very long expressions. We simplify the output:
FullSimplify[%]
The solution contains two values for each component of rp. We want to choose the first one for each, say
s/.%
Then we extract the first choice typing in either
Part[%,1]
or
First[%]
This yields
\[ ah' \left( \frac{\cos u}{\sqrt{f'^2 + h'^2}} + \frac{a\, \sin^2 u \,f' g'^2}{\sqrt{a^2 \sin^2 u \, f'^2 g'^2 \left( f'^2 + h'^2 \right) \left( f'^2 + g'^2 + h'^2 \right)}} \right) . \]
To extract the powers out of radical we apply PowerExpand to the expression.
S[t_, u_, a_] := PowerExpand[%]
This is what we called s before, but now we have explicit expressions
\[ S(t,u,a) = \frac{ah' \,\cos u}{\sqrt{f'^2 + h'^2}} + \frac{a\, \sin u \,f' g'}{\sqrt{\left( f'^2 + h'^2 \right) \left( f'^2 + g'^2 + h'^2 \right)}} . \]
Similarly, we can define
\[ V(t,u,a) = - \frac{a\, \sin u \,\sqrt{f'^2 + h'^2}}{\sqrt{f'^2 + g'^2 + h'^2}} \]
for v and
\[ W(t,u,a) = -\frac{af' \,\cos u}{\sqrt{f'^2 + h'^2}} + \frac{a\, \sin u \,f' g'}{\sqrt{\left( f'^2 + h'^2 \right) \left( f'^2 + g'^2 + h'^2 \right)}} \]
for w.
