This section presents some properties of the most remarkable and useful in numerical computations Chebyshev polynomials of first kind \( T_n (x) \) and second kind \( U_n (x) .\) Both Chebyshev polynomials are eigenfunctions of the corresponding singular Sturm--Liouville problems. Other two Chebyshev polynomials of the third kind and the fourth kind are not so popular in applications.

Best Approximations

A problem of finding the best approximation to a given function f(x) depends what distance between functions is in use. In a space of continuous function on an interval [𝑎, b], usually denoted by C[𝑎, b], we consider the distances generated by the norms:
  • uniform norm \( \displaystyle \| f(x) \|_{\infty} = \sup_{a \lle x \le b} \left\vert f(x) \right\vert ; \)
  • least squared or 𝔏² norm \( \displaystyle \| f(x) \|_{2} = \left\{ \int_a^b w(x)\,f^2 (x)\,{\text d}x \right\}^{1/2} , \) for some positive integrable function w(x), called weight;
  • 𝔏¹ norm \( \displaystyle \| f(x) \|_{1} = \int_a^b \left\vert f (x)\right\vert {\text d}x . \)

It is of considerable importance to determine a such approfimation p(x) to a given function f(x) that gives

\[ \| f(x) - p(x) \| = \mbox{minimum} \]
among functions p(x) from some class. We can this approximation the best. In other words, a best approximation to f(x) gives such function for which the deviation (or error)
\[ \| f(x) - p(x) \| \]
is minimum.
Theorem Chebyshev (1854): Let f(x) ∈ C[𝑎, b] be a continuous function and \( \displaystyle E_n (f) = \max_{a \le x \le b} \left\vert f(x) - p_n (x) \right\vert \) be an erroe of approximation f by polynomials of degree n. Then the best approximation is unique and is called the Chebyshev approximation of degree n to f(x) and
\[ \lim_{n\to \infty} E_n (f) = \lim_{n\to \infty} \max_{a \le x \le b} \left\vert f(x) - p_n (x) \right\vert = 0 . \]

Chebyshev Equioscillation Theorem: Let f(x) ∈ C[𝑎, b] and pn(x) be the best uniform approximation of degree n. Let \( \displaystyle E_n (f) = \max_{a \le x \le b} \left\vert f(x) - p_n (x) \right\vert \) and \( \displaystyle \varepsilon (x) = f(x) - p_n (x) . \) There are at least n + 2 points 𝑎 ≤ x1 < x2 < ··· < xn+2 ≤ b where ε(x) assumes the values ±En and with alternating signs:
\[ \begin{split} \varepsilon (x_i ) &= \pm E_n , \qquad i=1,2,\ldots , n+2 ; \\ \varepsilon (x_i ) &= - \varepsilon (x_{i+1} ) , \qquad i = 1, 2, \ldots , n+1 . \end{split} \]

Zeroes of Chebyshev polynomials

From the general theorem about zeroes of orthogonal polynomials, it follows that a Chebyshev polynomial of either kind of degree n has n different simple roots, called Chebyshev roots (or Chebyshev nodes), in the interval [−1,1]. The roots of the Chebyshev polynomial of the first kind are sometimes called Chebyshev nodes because they are used as nodes in polynomial interpolation. The extrema of Chebyshev polynomials of first kind are located at
\[ x_k = \cos \left( \frac{k\pi}{n} \right) , \qquad k=0,1,2,\ldots , n ; \]
while zeroes of \( T_n (t) \) are located at
\[ t_k = \cos \left( \frac{2k+1}{2n}\,\pi \right) , \qquad k=0,1,2,\ldots , n-1. \]

For demonstration, we consider the Chebyshev polynomial of the first kind, T4(x) = 8x3 −8x² + 1; its nodes are

\[ t_1 = \cos \left( \frac{\pi}{8} \right) \approx 0.92388, \qquad t_2 = \cos \left( \frac{3\pi}{8} \right) \approx 0.382683, \qquad t_3 = \cos \left( \frac{5\pi}{8} \right) \approx -0.382683, \qquad t_4 = \cos \left( \frac{7\pi}{8} \right) \approx -0.92388 . \]
circle = Graphics[{Blue, Thick, Circle[{0, 0}, 1, {0, Pi}]}] ar1 = Graphics[{Black, Arrow[{{-1.1, 0}, {1.2, 0}}]}];
ar2 = Graphics[{Black, Arrow[{{0.0, -0.2}, {0.0, 1.2}}]}];
line1 = Graphics[{Black, Dashed, Thick, Line[{{0.924, 0}, {0.924, 0.35}}]}];
line2 = Graphics[{Black, Dashed, Thick, Line[{{0.383, 0}, {0.383, 0.92}}]}];
line3 = Graphics[{Black, Dashed, Thick, Line[{{-0.383, 0}, {-0.383, 0.92}}]}];
line4 = Graphics[{Black, Dashed, Thick, Line[{{-0.924, 0}, {-0.924, 0.35}}]}];
dx1 = Graphics[{Red, Disk[{0.924, 0}, 0.02]}];
dx4 = Graphics[{Red, Disk[{-0.924, 0}, 0.02]}];
dx3 = Graphics[{Red, Disk[{-0.383, 0}, 0.02]}];
dx2 = Graphics[{Red, Disk[{0.383, 0}, 0.02]}];
dy1 = Graphics[{Purple, Disk[{0.924, 0.376}, 0.02]}];
dy4 = Graphics[{Purple, Disk[{-0.924, 0.376}, 0.02]}];
dy2 = Graphics[{Purple, Disk[{0.383, 0.926}, 0.02]}];
dy3 = Graphics[{Purple, Disk[{-0.383, 0.926}, 0.02]}];
txt1 = Graphics[Text[Style[Subscript[t, 1], 20], {0.92, -0.11}]];
txt2 = Graphics[Text[Style[Subscript[t, 2], 20], {0.383, -0.11}]];
txt3 = Graphics[Text[Style[Subscript[t, 2], 20], {-0.383, -0.11}]];
txt4 = Graphics[Text[Style[Subscript[t, 4], 20], {-0.92, -0.11}]];
tx = Graphics[Text[Style["x", 20], {1.17, 0.11}]];
ty = Graphics[Text[Style["y", 20], {0.17, 1.11}]];
Show[circle, ar1, ar2, line1, line2, line3, line4, dx1, dx2, dx3, dx4, dy1, dy2, dy3, dy4, txt1, txt2, txt3, txt4, tx, ty]

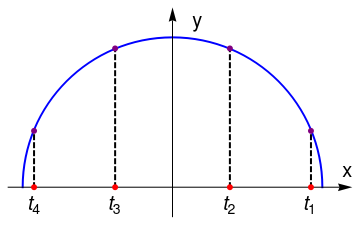

Chebyshev nodes
We check th nodes:
ChebyshevT[4, 0.38268343236508977172845998403039886679]
1.*10^-37
Then we calculate extreme points{
\[ x_1 = \cos \left( \frac{\pi}{4} \right) \approx 0.707107 , \qquad x_2 = \cos \left( \frac{2\pi}{4} \right) =0 , \qquad x_2 = \cos \left( \frac{3\pi}{4} \right) \approx -0.707107 ; \]
and evaluate the Chebyshev polynomial at these points
ChebyshevT[4, 0.7071067811865475]
1.

Since the total number of extreme nodes xk is n + 1, the derivative of the Chebyshev polynomial of the first kind Tn(x) on interval (−1, 1) has n −1 zeroes. Hence the Chebyshev polynomial outside the closed interval [−1, 1] is monotonic. Therefore, all oscillations occur within interval [−1, 1] and \( \left\vert T_n (x) \right\vert &le 1 . \) Moreover

\[ \left\vert \frac{{\text d} T_n (x)}{{\text d}x} \right\vert = \left\vert \frac{n \,\sin \left( n\, \arccosx \right)}{\sqrt{1 - x^2}} \right\vert \le n^2 , \quad x \in [-1, 1]. \]
  1. Clenshaw, C.W., Norton, H.J.: The solution of nonlinear ordinary differential equations in chebyshev series. The Computer Journal, 1963, {\bf 6}, Issue 1, 88–92; https://doi.org/10.1093
